In the HVAC field understanding, the electrical theory is by far one of the most difficult areas of study. One of the key concepts is Ohm’s Law. Back in the 19th century a German physicist name Georg Ohm discovered the relationship between voltage, resistance, and current in an electric circuit.

Ohm’s Law states:

The current in a circuit is directly proportional to the voltage, and inversely proportional to the circuit’s resistance.

Ohm’s Law basic equation:

Volts (E) = Current (I) x Resistance (R) or E = I x R.  Here’s an example:

A circuit has 1.5 amps (I) and 100 ohms (R). What is the voltage?

E = 1.5 amps x 100 ohms. Answer: 150 volts.

Just like any algebraic equation if any two of the three values are known, the third value can be calculated. The following are the three most commonly used Ohm’s Law equations:

E = I x R

I = E/R

R = E/I

In the example above if:

I = 15 0 volts/100 ohms = 1.5 amps

or

R =  150 volts/1.5 = 100 ohms

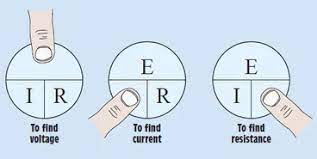

There is an easy way to remember these three basic equations by using the Ohm’s Law wheel shown below:

HVAC Certification Ohm's Law

Just cover up the value you want to calculate for. For example, you want to calculate for voltage (E). Cover the E with you finger, the equation becomes: IxR.  Can you see it? If you are solving for current (I), the equation then becomes: E/R.

To recap Ohm’s Law:

Current – the rate of electron flow through a circuit.

Voltage – the force that “pushes” the current through the circuit.

Resistance – the opposition to current in a circuit

Current in a circuit is directly proportional to the voltage… the more voltage the more current.

Current in a circuit is  inversely proportional to the circuit’s resistance… the more resistance the less current.

Ohm’s Law is just the tip of the iceberg when learning the fundamentals of electricity, but it is one of the most important concepts. Our online HVAC classes teach you everything you need to know to become a top notch electrical troubleshooter. For more information about our online HVAC courses please call or email.
